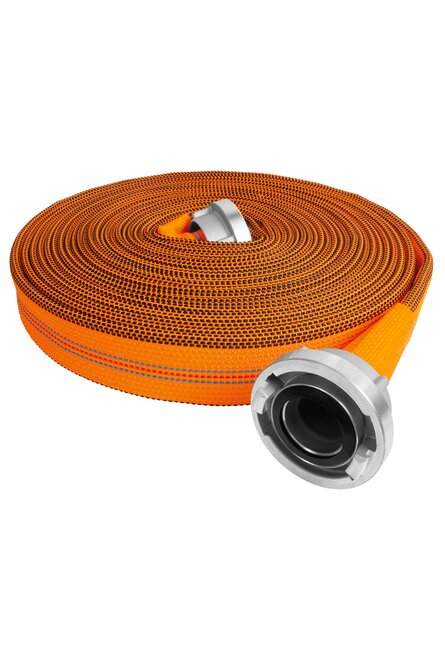

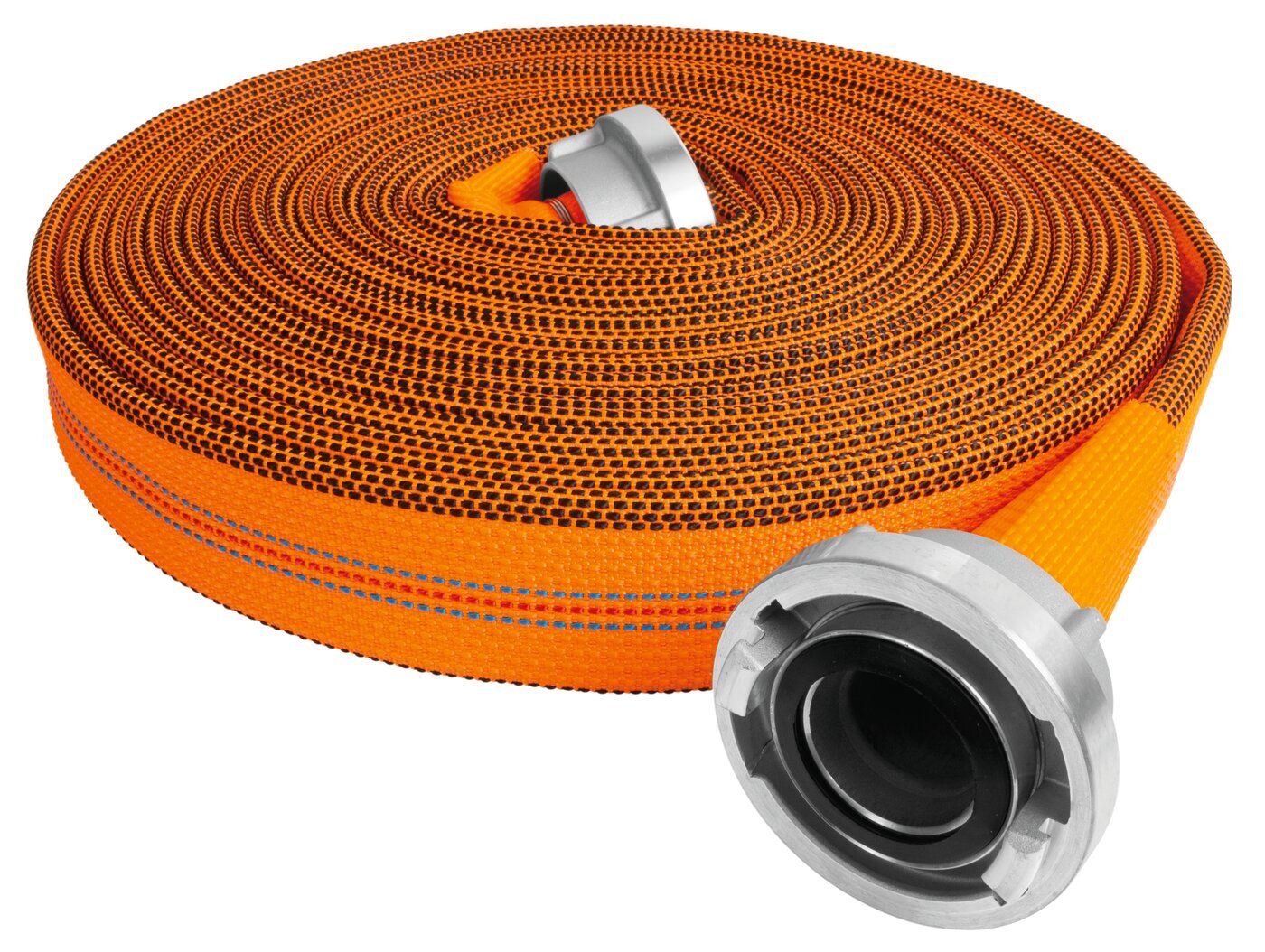

INTRAX ORANGE 42MM/ 15M
INTERACTIVE WEAVING TECHNOLOGY
Itemnumber: 378021
Availability:
available
The INTRAX‘s hose wall, made of two layers woven into each other, increases abrasion resistance and cut protection and is still lightweight, like a conventional fire hose
ONE LAYER, TWO FUNCTIONS
PATENTED WEAVING PROCESS CREATES NEW TEXTILE POSSIBILITIES
The INTRAX guarantees optimum protection by absorbing the burst pressure at the woven inner layer. In addition, it ensures extended service life, maximum safety, easy handling and ideal gliding properties thanks to the proven 3D nub structure on the outside.
But what makes the INTRAX so unique? Its extraordinary bursting pressure: With 95 bar in its original condition - and even with 60 bar after the successful L3 abrasion test, the INTRAX emphasizes its technological advantage over comparable fire hoses. The low bending radius - 180 mm at 12 bar - makes the INTRAX a safe and reliable partner even in the most contorted application scenarios.
materials
inside lining
EPDM
weight
weight kg/m
0.27 kg
General
EAN
9003763443924
Weight
4.89 kg
power level
L3
bending radius
180 mm
standard
DIN 14811
colour
orange-black
Construction
circular woven
temperature range
-30°C to +100°C
